Folosind tehnologiile 4K HDMI si 6G-SDI, Mini Converter detecteazs automat formatul video de intrare si se schimba instantaneu între formatele SD, HD si UHD / DCI 4K. Cu doua intrari SDI si o iesire SDI si HDMI, unitatea va trece automat de la intrarea SDI principala la intrarea alternativa daca intrarea principala nu reuseste. Audio este dezactivat de la intrarea SDI si disponibil în iesirea HDMI, precum si AES / EBU sau iesire audio analogica

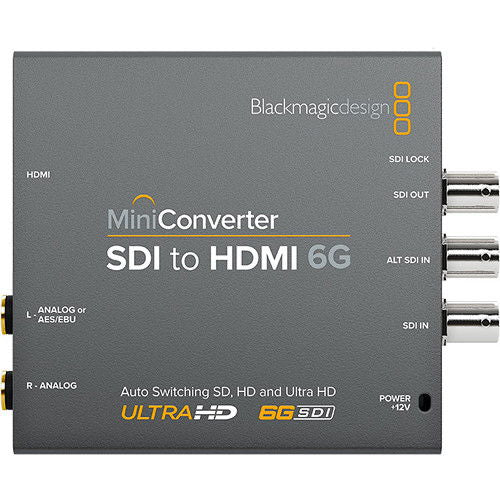

Intare Video	2 x 6G-SDI
Iesire Video	1 x HDMI type A 1 x 6G-SDI
Multi-Rate Support	Auto detection of SD, HD, or 4K signals
Reclocking	Yes
Iesire Audio	Analog: 2 channels with 1 x 1/4" jack per channel AES/EBU: 4 channels with 1 x 1/4" jack
Format Support	DCI 4K 24p UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
Conformitate SDI	SMPTE 259M/292M/296M/372M/424M/425M Level A or Level B/SMPTE ST-2081
SDI Video Rates	SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI.
SDI Video Sampling	4:2:2 4:4:4
SDI Color Precision	4:2:2 4:4:4
SDI Color Space	YUV RGB
SDI Audio Sampling	24-bit, 48 kHz
SDI Auto Switching	Automatically detects SD, HD, or 6G-SDI
Rezolutii suportate HDMI	UHD 4K 3840 x 2160p: 30/29.97/25/24/23.98 HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD NTSC: 525i/59.94 PAL: 625i/50
HDMI Color Space	YUV and RGB
HDMI Color Precision	4:2:2 4:4:4
Format conversie	HD down-conversion

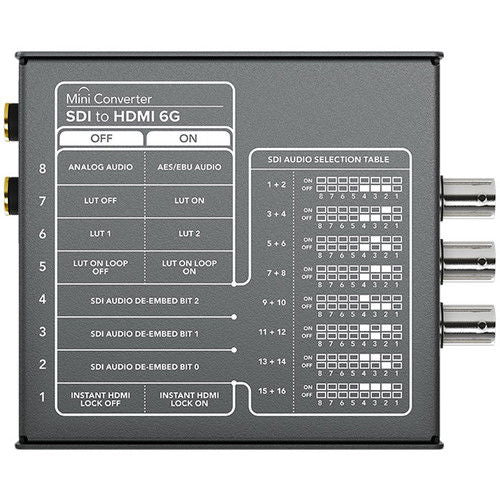

Control setari	Mini switches or USB software
Upgrade Firmware	Via USB
Putere	12 VDC
Consum putere	5.2 W
Voltaj operational	12 la 31 VDC
Temperatura functionare	0 la 40°C
Temperatura depozitare	-20 la 45°C
Umiditate admisa	0 la 90% fara condens
Dimensiuni	11.40 x 9.22 x 2.29 cm
Greutate	256.85 g

.
