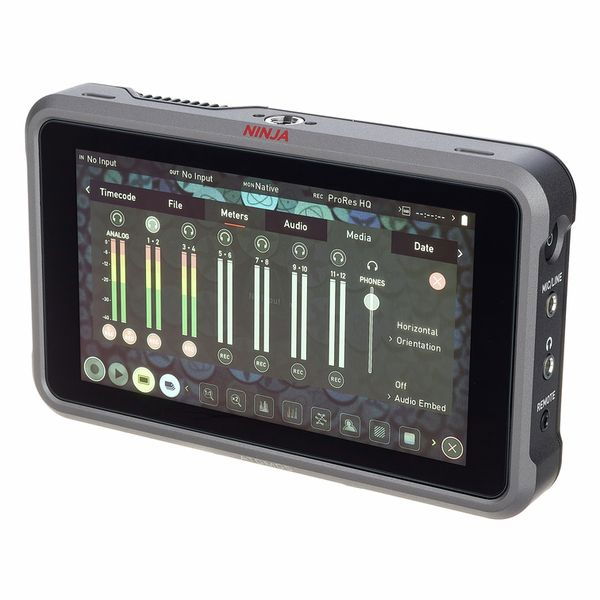

Atomos Ninja V+ este un monitor HDR cu diagonala de 5 inci, capabil sa inregistreze continut in cele mai convenabile rezolutii, suporta ProRes Raw cu anumite camere foto.



Beneficiaza de un display full HD 1920×1080, suporta inregistrare de pana la 4K120p si, cu o baterie seria L si puterea de intrare DC 6,2 - 16,8 VDC.



Afisajul are o luminozitate de 1000 cd/m2, ceea ce inseamna ca poate fi folosit inclusiv in soare direct.

• Display Touchscreen 1920 x 1080


• Intrare / iesire HDMI 2.0


• Luminozitate 1000 cd / m²


• Inregistrati pana la 8K30 ProRes Raw


• Codec H.265 pre-activat

5'' Monitor/Recorder with AtomX SDI Module

• Enables recording at up to 8K30p and 4K120p directly from the camera's sensor


• H.265 HEVC 10-bit 4:2:2 signal processing


• 10-Bit Exterior Viewable Monitor


• AtomHDR Mode with 10-Stop Dynamic Range


• Records to 2.5" mini or standard SSDs


• 10-Bit 4:2:2 ProRes & DNxHR encoding


• Touchscreen: 5.2" SuperAtom IPS panel (capacitive touch)


• Aspect ratio: 16:9


• Resolution: 1920 x 1080


• PPI: 427


• Bit depth: 10Bit (8+2 FRC)


• Brightness (cdm2 / nits): 1000 +/- 10%


• Colour space: Rec.709


• Calibration support: Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)


• 1x 2.5" SATA Slot (SSD)


• Housing: Aluminium with ABS plastic


• Cooling: Actively controlled fan and heat sink


• Tally light: Rear and front


• Dimensions: 151 x 91.5 x 31 mm


• Weight: 360 g

Video input:

• HDMI: 1 x HDMI (2.0) 4k p60


• HDMI RAW: Apple's ProRes RAW up to 8k


• SDI: Optional via AtomX SDI module


• SDI RAW: Optional activation key (not included)required (not included)


• Bit depth: 8/10bit video / RAW up to 12bit


• Video Chroma Subsampling: 420 and 422


• HDCP copy protection: Not supported

Video output:

• HDMI: 1 x HDMI (2.0) 4k p60


• SDI loop out: Optional via AtomX SDI module (not included)


• SDI play out: Optional via AtomX SDI module (not included)


• Video Chroma Subsampling: 422


• Bit depth: 10Bit video

Power supply:

• Input voltage: 6.2 to 16.8 V


• Operating voltage: 5.8 to 7.2 V


• Compatible batteries: NPF L-series


• Continuous power supply: Via optional AtomX SYNC module (not included).


• DC input connection: Via DC socket on battery eliminator


• Dtap: Via battery eliminator and optional DTap to DC cable

Scope of delivery:

• 1x Ninja V+ unit


• 1x Atomos AtomX SDI module


• 1x Hard Case


• 1x Master Caddy


• 1x Battery Eliminator


• 1x DC power supply

Note: SDI RAW Pre-Activated and H.265 free activation via my.Atomos.com





Include:

">1 x Monitor Ninja V+ cu SDI RAW pre-activat si h565 pre-activat 1 x Modul SDI AtomX 1 x Hard Case EVA-Style 1 x Husa din neopren 1 x Carcasa Master Caddy II 1 x Battery Eliminator/Dummy Battery 1x Sursa de alimentare DC 1x Cablu D-Tap 1x AtomX 5" Sunhood
