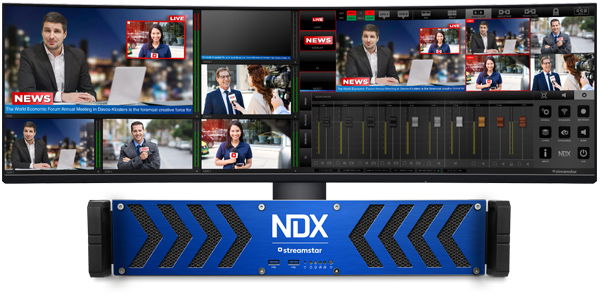

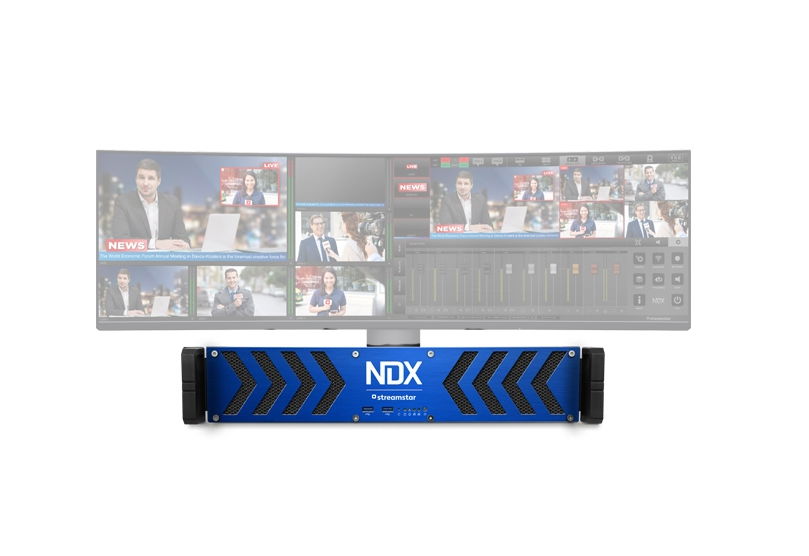

Streamstar NDX este cel mai nou sistem de live streaming multicam lansat pentru a oferi posibilitatea corporatiilor, scolilor sau intitutiilor ce nu dispun de pregatire tehnica in domeniul televiziunii, sa realizeze transmisii live multicam pana la 4 camere, intr-un mod simplu dar foarte complex.

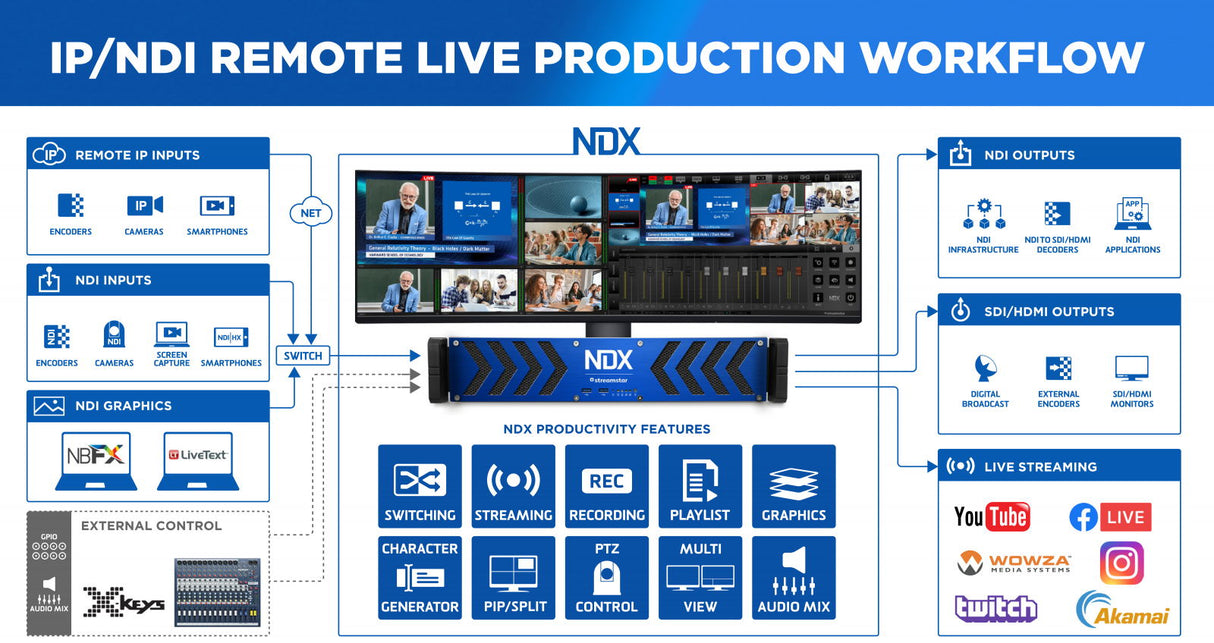

Produs nou lansat, cu caracteristici complete, 4 canale, productie la distanta in direct si studio de streaming pentru surse IP / NDI. Streamstar NDX este puternic, dar usor de utilizat, este solutia perfecta de difuzare si streaming pentru posturi de televiziune mici, TV comunitara, scoli, universitati, invatare la distanta, biserici online, radio vizual, conferinte sau evenimente eSports. La un pret imbatabil, acesta este instrumentul ideal de productie live adaptat la situatia actuala si cerintele pietei.

Nu include monitor, acesta se achizitioneaza separat.

Caracteristici:

Interfata de utilizare a ecranului tactil intuitiv si usor de utilizat

4x intrari flux NDI / IP

Iesire NDI / RTMP / S / TS

Iesire HD-SDI / HDMI (modul optional)

4x Straturi de insertie - Logo / Overlay / CG / Ingest

Moduri de comutare automate Cut / Crossfade / Transitions

CG intern

Grafica externa cu transparenta peste NDI

Multiview incorporat cu 3 moduri

Mixer audio incorporat

Inregistrare NDI - PGM

Inregistrare in flux

Encoder incorporat pentru streaming live

Media Player

Playlists cu functii automate de pauza / continuare

NDI PTZ control

Camera video JVC CCU bazata pe IP si Tally

Control inteligent PTZ JVC

Gestiunea fluxului de intrare IP a camerei video JVC

AutoCut - comutarea automata a camerei dupa redarea media

Control GPIO (tastele X)

Cota GPIO (tastele X)

Manager automat de scene - Afisare automatizare *

Grafica Ingestie automata On / Off

Editare / taiere media cu puncte IN / OUT

Dispuneri de ecran PIP si SPLIT

Reala procesare video ARGB 4: 4: 4: 4

Integrare de platforme de streaming populare

simulcasting

Automatizare secventa CG

Salveaza / Incarca setarea sistemului si valorile implicite personalizate

Proiecte CG export / import

Editorul sabloane de ecran PIP si SPLIT

Comanda rapida de la tastatura personalizabila

Optiunea locala de afisare a orei PC in Time / Score C

Feed RSS de date automatizate Crawl CG RSS 2.0



*) in curand

NOTA: monitorul nu este inclus

Specificatii	Status	Descriere
Total intrari camere	4	Vision mixer SW GUI features 4 live camera preview monitors that function as switches for touch-screen switching operation
Intrare NDI	4	Supported resolutions and framerates: 720p25, 720p50, 1080p25, 1080i50, 1080p50
Intrare IP Stream	4	720p25, 720p50, 1080p25, 1080p50 in h564+AAC, 10 Mbps max bitrate per input, supported protocols: RTSP, MPEG-TS, UDP, RTMP PULL, HLS PULL
External graphics input with transparency over NDI	1	Supported resolutions and framerates: 720p25, 720p50, 1080p25, 1080p50
Iesire NDI - PGM	1	Supported resolutions and framerates: 720p50, 1080p25, 1080p50
3G/HD-SDI iesire - PGM (HDMI inclus )	optional	Supported resolutions and framerates : 720p50, 1080i50, 1080p50
Multiview output ( GPU based HDMI or DP )	●	3 modes available select from: PGM / Camera Grid / PGM + Camera Grid combined
USB audio card support (external audio mixer)	•	External audio mixer as a source support
Media playback	●	Playback, Preview, Add to Playlist, Mute, Loop, Virtual in/out points trim
Playlists media management system	●	Creation of virtual playlists of media files to assemle blocks of content to be used in PGM with playback, loop, audio mute, automatic pause / continue functionality when switched
Real time camera preview, media, graphics	●	Preview of all sources
Switching / Mixing / PIP & Split layouts	●	Cut, Autocut, Crossfade, Transition wipes (9), PIP & SPLIT SCREEN templates (9) editable
Automated Scene manager – Show automation*	optional	to be released in Q2/2020
Graphics DSK - unlimited	●	4 DSK layers with transparency: 1. CG - Character Generator | 2. OVERLAYS - flv, mov, png | 3. LOGO (Bug) - flv, mov, png | 4. INGEST - External graphics ingest over NDI
Internal CG with templates	●	Creation of editable live graphics - lower 3rds, titles, crawls or timers with dynamic data controls based on supplied templates or user graphics
NDI PGM Recording	●	720p50, 1080p25, 1080p50 - identical to NDI Output setting
PGM stream recording	●	Up to 1080p50 @ up to 10Mbps - identical to Live Streaming setting
Live streaming	●	Up to 1080p50 @ up to 10Mbps / RTMP/S or TS (H.264 + AAC)
Simulcasting	●	Streaming to up to 5 simultaneous destinations
Audiomixer	●	Integrated, full featured audio mixer with monitoring, audio follow video,audio delay setup, muting, peaking…
Supported Media Playback Formats	●	.mp4, .m4v, .wmv, .mpg, .mpeg, .ts, .avi, .flv
NDI PTZ control	●	NDI PTZ camera control over NDI based on provided features availability and depending on the NDI standard
JVC Smart PTZ Control	●	JVC PTZ camera control over IP - Motion with presets, Zoom with presets, Camera Groups with presets, Tally, Auto/Manual modes, Recording, Iris, Gain, Shutter, WB, Zero Config automatic setup
JVC IP based CCU and Tally	●	JVC camcorders remote control over IP - Tally light, Recording On/Off, Auto/Manual modes, Iris, Gain, Shutter, WB settings, Zero Config automatic setup and network discovery
JVC camcorder IP input stream management	●	JVC camcorders remote control over IP - Resolution, Bitrate, IP video stream destination setup
GPIO control	●	2 customisable GPIO controls with user defined parameters to trigger external devices and/or actions
Settings Save and load	●	Integrated save / load system settings to create various custom configurations and specify default settings for system startup
PIP/SPLIT Screen templates editor	●	Utility application to customize the provided default PIP/SPLIT Screen templates and to save/load custom configurations for the Streamstar SW
Crawl CG automated RSS 2.0 data feed	●	Support for automated RSS 2.0 data feed to create text crawls with the internal CG module
Optional Accessories	-	Streamstar dedicated, colour coded keyboard

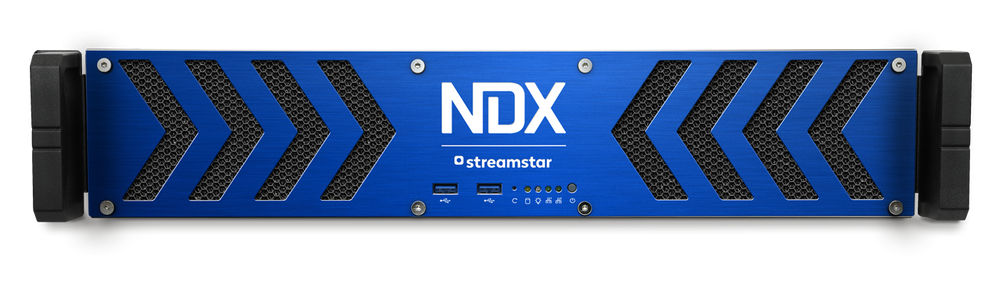

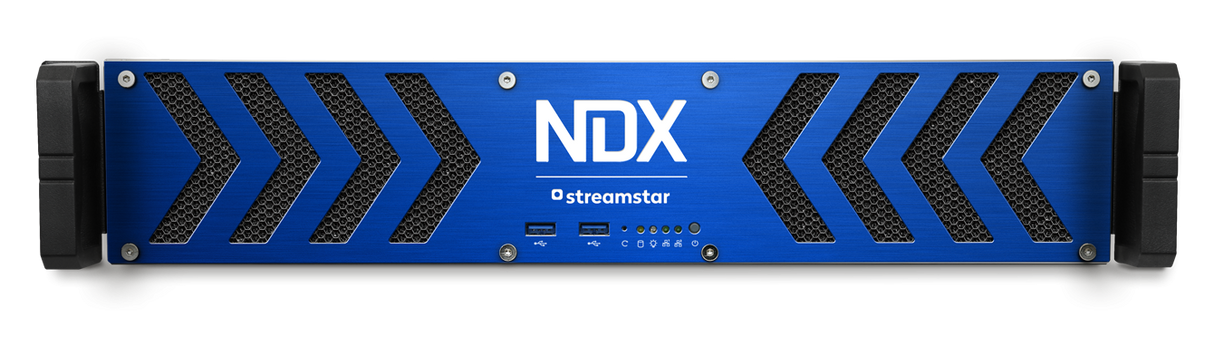

Form Factor	-	2RU rack
Dimensions without handles	-	(DxWxH) 457.2mm x 430mm x 88.1mm
Packing dimensions and weight	-	(DxWxH) 600mm x 580mm x 220mm / Weight: 15kg
