Intrare video SDI | 1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
Iesire video SDI | 1 x SD/HD/3G/6G-SDI |
Intrare Audio | 4 x 1/4" jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
Multi-Rate Support | Detecteaza automat semnal SD, HD, 2K, UHD, and 4K signals |
Reclocking | Da |
Rezolutii suportate | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 23.98/24/25/29.97/30 |
Standard SDI | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
SDI Video Rates | Switchable between SD, HD, 3G, and 6G-SDI |
SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
SDI Video Sampling | 4:2:2, 4:4:4 |
SDI Audio Sampling | 24-bit, 48 kHz |
SDI Color Precision | 4:2:2, 4:4:4 |
SDI Color Space | YUV, RGB |

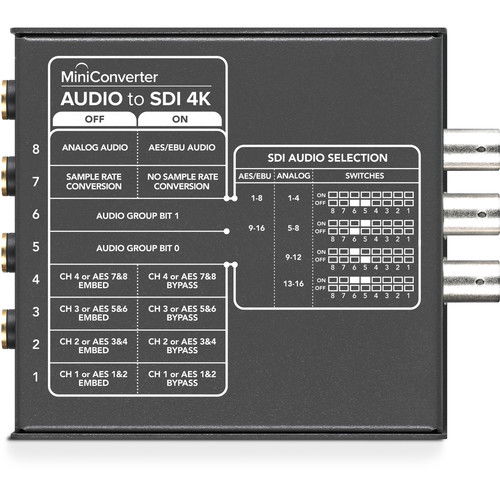

Control setari | DIP switches or USB software for Mac OS X and Windows |
Update Firmware | Via USB 2.0 |
Putere | 12 VDC |
Putere de consum | 8.4 W |
Voltaj operational | 12 la 31 VDC |
Temperatura operare | 0 la 40 ° C |
Temperatura depozitare | -20 la 45 ° C |
Umiditate admisa | 0 la 90% fara condens |
Dimensiuni | 11.48 x 9.22 x 2.29 cm |
Greutate | 215.74 g |
