Atomos Ninja V+ Pro Kit Recorder Video SDI ProRes RAW 8K30p

Atomos Ninja V+ este un monitor HDR cu diagonala de 5 inci, capabil sa inregistreze continut in cele mai convenabile rezolutii, suporta ProRes Raw cu anumite camere foto.

Beneficiaza de un display full HD 1920×1080, suporta inregistrare de pana la 4K120p si, cu o baterie seria L si puterea de intrare DC 6,2 - 16,8 VDC.

Afisajul are o luminozitate de 1000 cd/m2, ceea ce inseamna ca poate fi folosit inclusiv in soare direct.

• Display Touchscreen 1920 x 1080
• Intrare / iesire HDMI 2.0
• Luminozitate 1000 cd / m²
• Inregistrati pana la 8K30 ProRes Raw
• Codec H.265 pre-activat



5'' Monitor/Recorder with AtomX SDI Module

• Enables recording at up to 8K30p and 4K120p directly from the camera's sensor
• H.265 HEVC 10-bit 4:2:2 signal processing
• 10-Bit Exterior Viewable Monitor
• AtomHDR Mode with 10-Stop Dynamic Range
• Records to 2.5" mini or standard SSDs
• 10-Bit 4:2:2 ProRes & DNxHR encoding
• Touchscreen: 5.2" SuperAtom IPS panel (capacitive touch)
• Aspect ratio: 16:9
• Resolution: 1920 x 1080
• PPI: 427
• Bit depth: 10Bit (8+2 FRC)
• Brightness (cdm2 / nits): 1000 +/- 10%
• Colour space: Rec.709
• Calibration support: Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
• 1x 2.5" SATA Slot (SSD)
• Housing: Aluminium with ABS plastic
• Cooling: Actively controlled fan and heat sink
• Tally light: Rear and front
• Dimensions: 151 x 91.5 x 31 mm
• Weight: 360 g

Video input:





• HDMI: 1 x HDMI (2.0) 4k p60
• HDMI RAW: Apple's ProRes RAW up to 8k
• SDI: Optional via AtomX SDI module
• SDI RAW: Optional activation key (not included)required (not included)
• Bit depth: 8/10bit video / RAW up to 12bit
• Video Chroma Subsampling: 420 and 422
• HDCP copy protection: Not supported

Video output:





• HDMI: 1 x HDMI (2.0) 4k p60
• SDI loop out: Optional via AtomX SDI module (not included)
• SDI play out: Optional via AtomX SDI module (not included)
• Video Chroma Subsampling: 422
• Bit depth: 10Bit video

Power supply:





• Input voltage: 6.2 to 16.8 V
• Operating voltage: 5.8 to 7.2 V
• Compatible batteries: NPF L-series
• Continuous power supply: Via optional AtomX SYNC module (not included).
• DC input connection: Via DC socket on battery eliminator
• Dtap: Via battery eliminator and optional DTap to DC cable

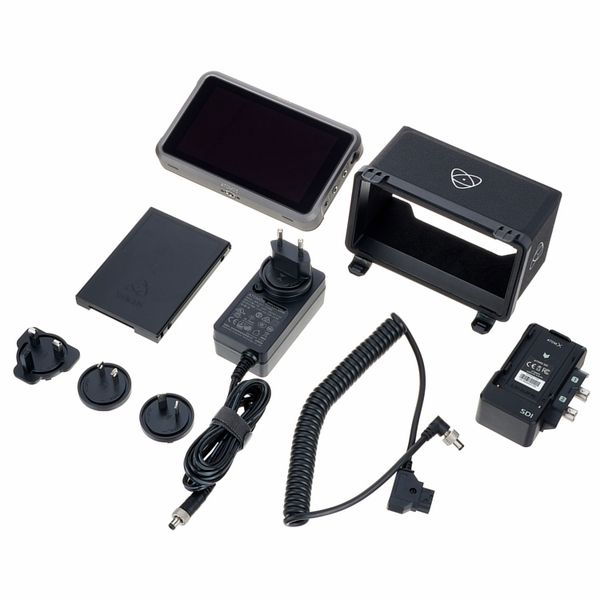

Scope of delivery:





• 1x Ninja V+ unit
• 1x Atomos AtomX SDI module
• 1x Hard Case
• 1x Master Caddy
• 1x Battery Eliminator
• 1x DC power supply

Note: SDI RAW Pre-Activated and H.265 free activation via my.Atomos.com


Include:


">1 x Monitor Ninja V+ cu SDI RAW pre-activat si H265 pre-activat 1 x Modul SDI AtomX 1 x Hard Case EVA-Style 1 x Husa din neopren 1 x Carcasa Master Caddy II 1 x Battery Eliminator/Dummy Battery 1x Sursa de alimentare DC 1x Cablu D-Tap 1x AtomX 5" Sunhood
