Blackmagic Design Blackmagic Video Assist 5" 12G HDR Recorder/Monitor

4.419,00 Lei
  • Diagonala ecran 5"
  • Conectivitate HDMI/SDI
  • Redare 4K
  • SDI rates 270Mb, 1.5G, 3G, 6G, 12G.
  • Poate fi folosit de asemenea si ca un recorder
La comanda

Durata de livrare: 1-2 zile pentru produsele aflate in stoc

Limita stoc
Adauga in cos
Cod Produs: HYPERD/AVIDA12/5HDR Ai nevoie de ajutor? 0314256991
La achizitionarea acestui produs primiti 44.19 lei pentru comenzile viitoare
Adauga la Favorite Cere informatii
  • Descriere
  • Video (2)
  • Review-uri (0)

Blackmagic Video Assist 5" 12G HDR Recorder/Monitor


Blackmagic Video Assist 12G HDR 5" va ajuta sa monitorizati filmarile cu camere cu conector SDI sau HDMI in format HD, Ultra HD, 2K, 4K DCI.

La Blackmagic Video Assist ecranul este luminos, ideal pentru HDR-uri. Poate fi folosit de asemenea si ca un recorder pe teren sau pentru broadcasting, multumita intrarilor HDMI si 12G-SDI.

Blackmagic Video Assist dispune de functii avansate precum 3D LUT si ofera informatii despre Waveform, RGB Parade, Vector, Histogram.
Monitorul Blackmagic Video Assist va permite sa controlati imaginea inaintea sa o transmiteti live.

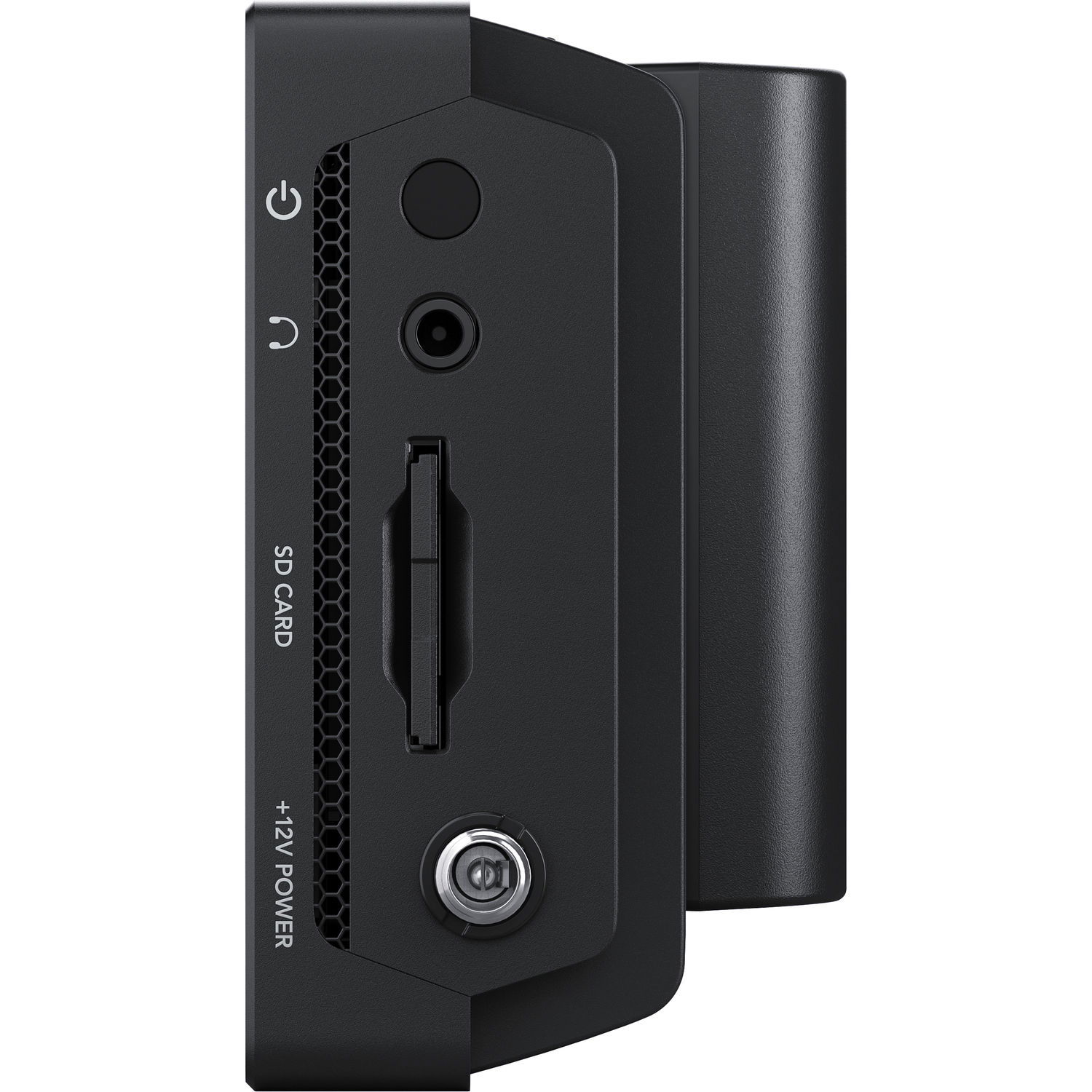

Blackmagic Video Assist este dotat cu 2 slot-uri media, intrari analogice pentru audio, difuzor si jack pentru casti. Se alimenteaza cu 2 baterii standard Sony L-Series sau cu alimentatorul inclus.

Puteti folosi orice software de editare, deoarece Video Assist este compatibil cu toate programele (Apple ProRes, Avid DNx, Blackmagic RAW).

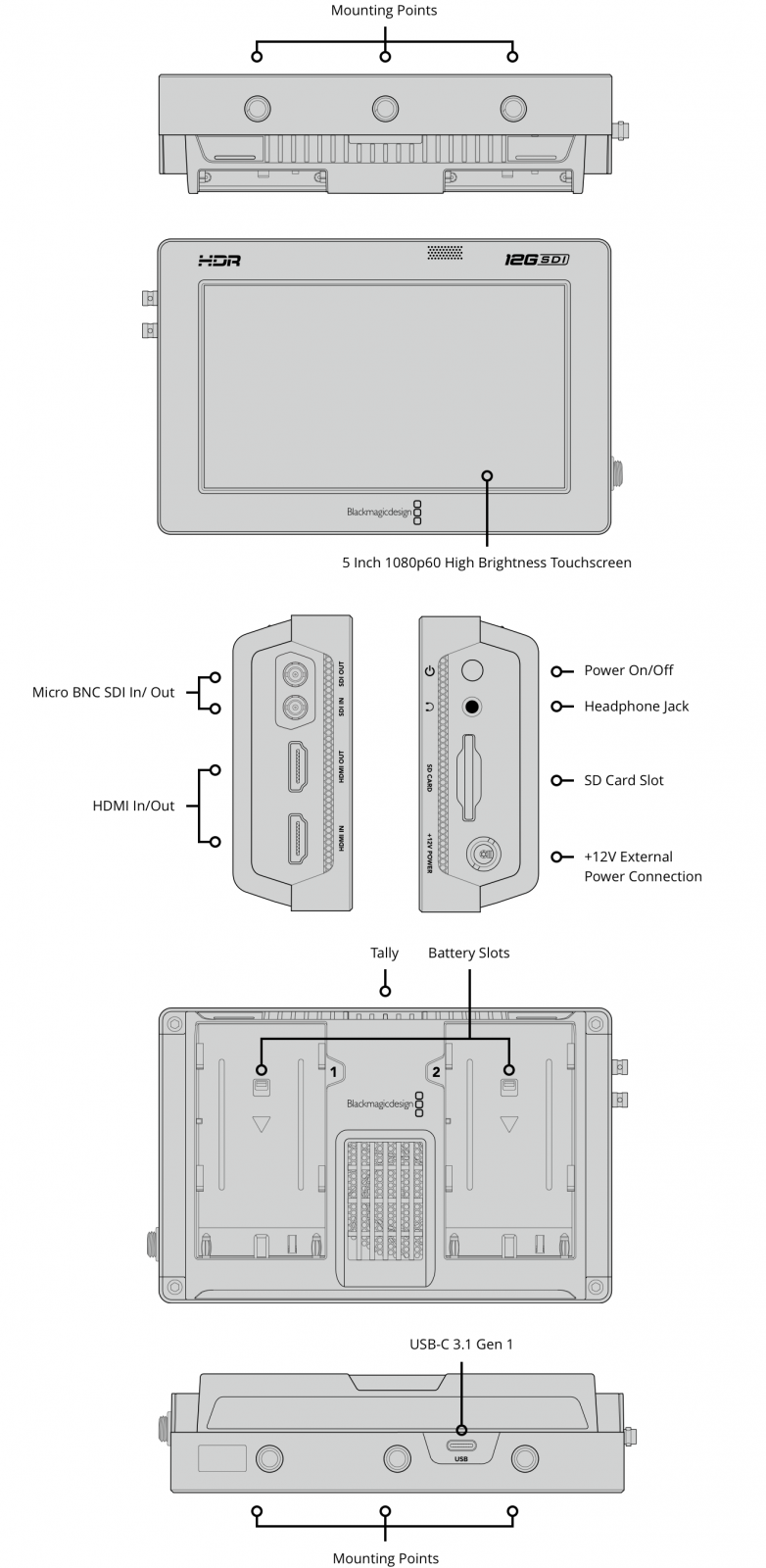

Caracteristici Blackmagic Video Assist 5" 12G:

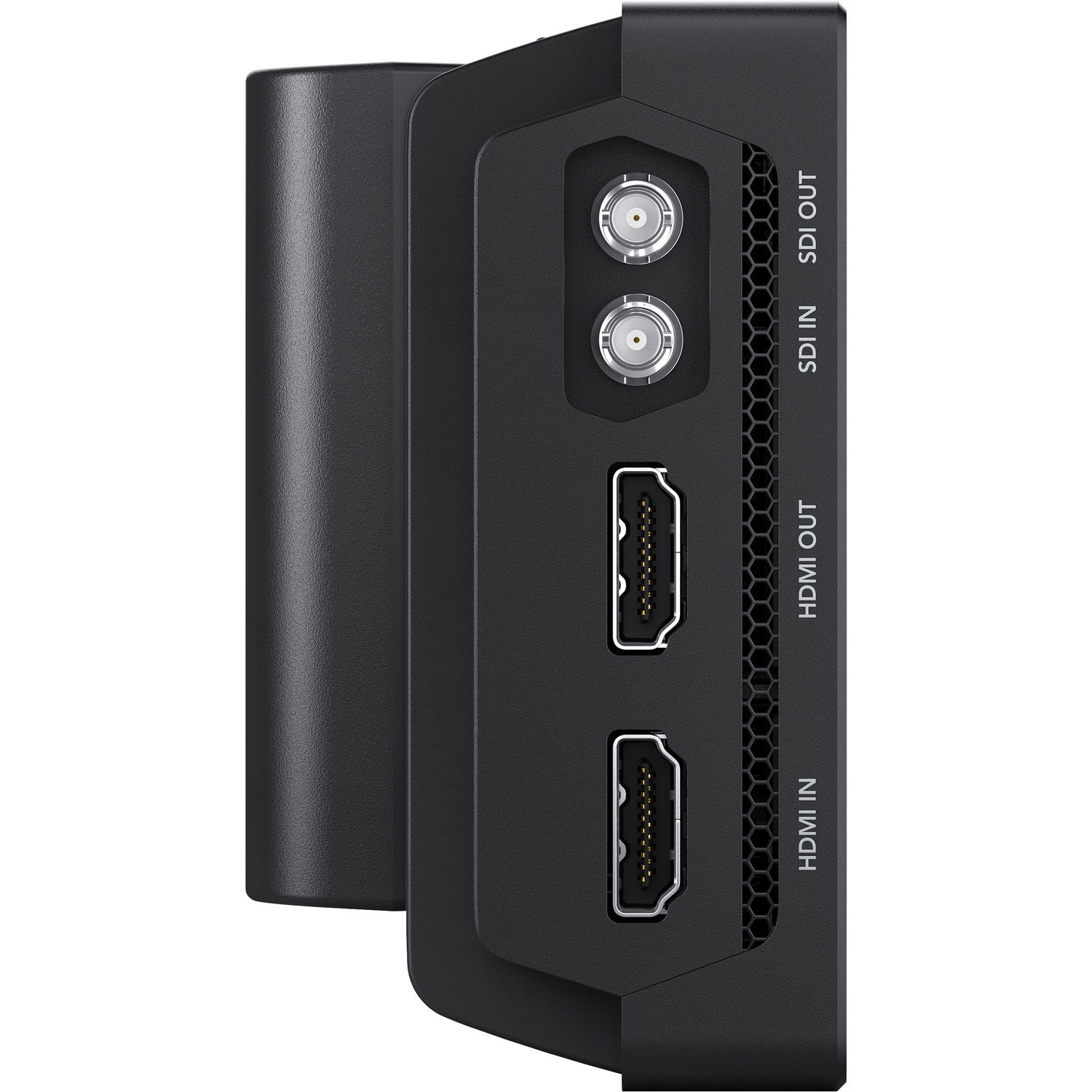

  • SDI Video Inputs:  1 x Micro BNC
  • SDI Video Outputs:   1 x Micro BNC
  • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
  • HDMI 2.0a Video Inputs: 1
  • HDMI 2.0a Video Outputs: 1
  • Analog Audio Inputs: None, embedded audio only.
  • Analog Audio Outputs:  1 x 3.5 mm headphone jack.
  • Built in Speaker: Mono

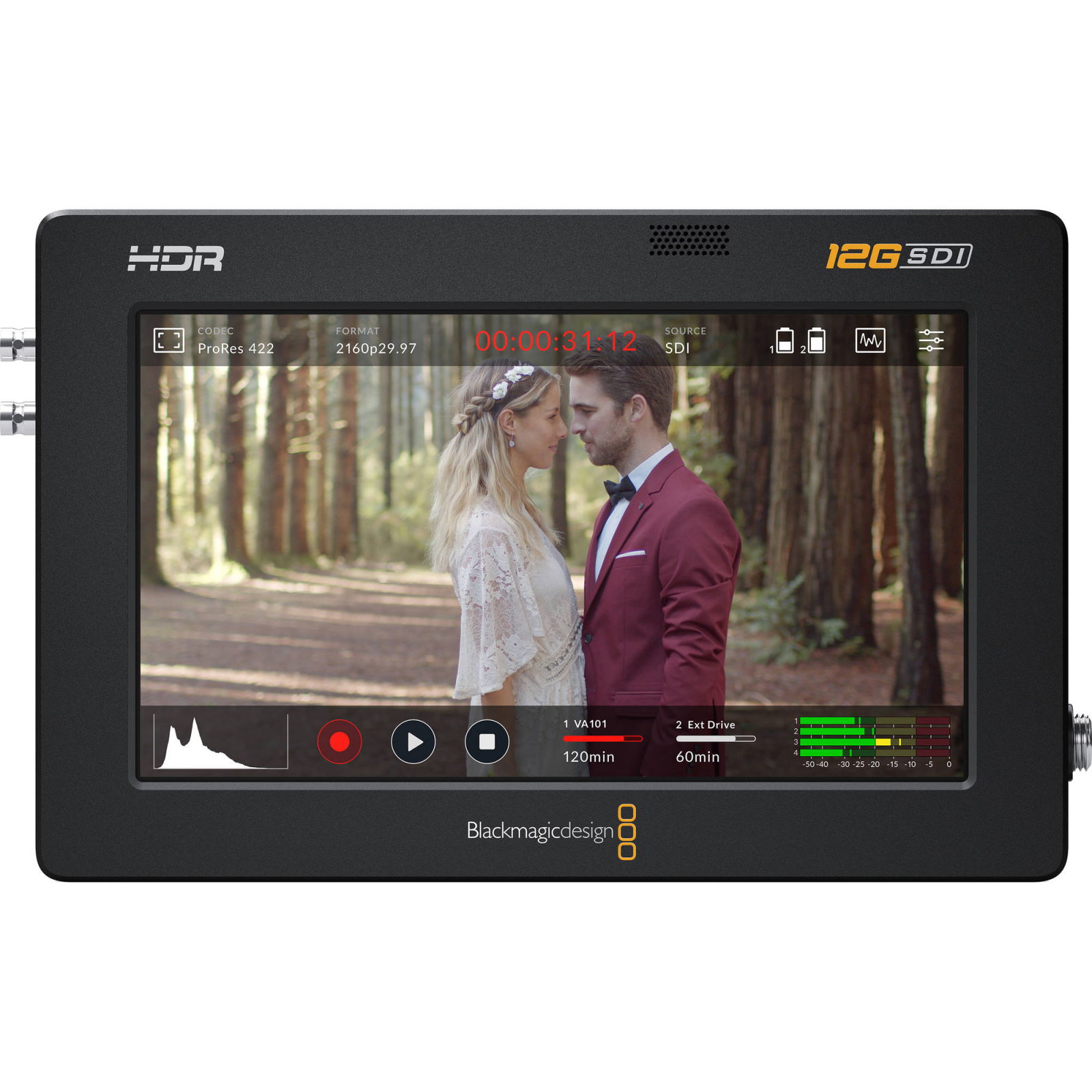

  • Screen Dimensions:  5-inch 1920 x 1080.
  • Screen Brightness: 2500nits
  • Screen Colour: P3 wide colour gamut
  • SDI Audio Inputs: 16 channels embedded via 12G-SDI
  • SDI Audio Outputs: 16 channels embedded via 12G-SDI
  • HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
  • HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
  • Remote Control: None
  • SD Interface: 1 x UHS-II SD slot.
  • Storage Type: Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards
  • Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.

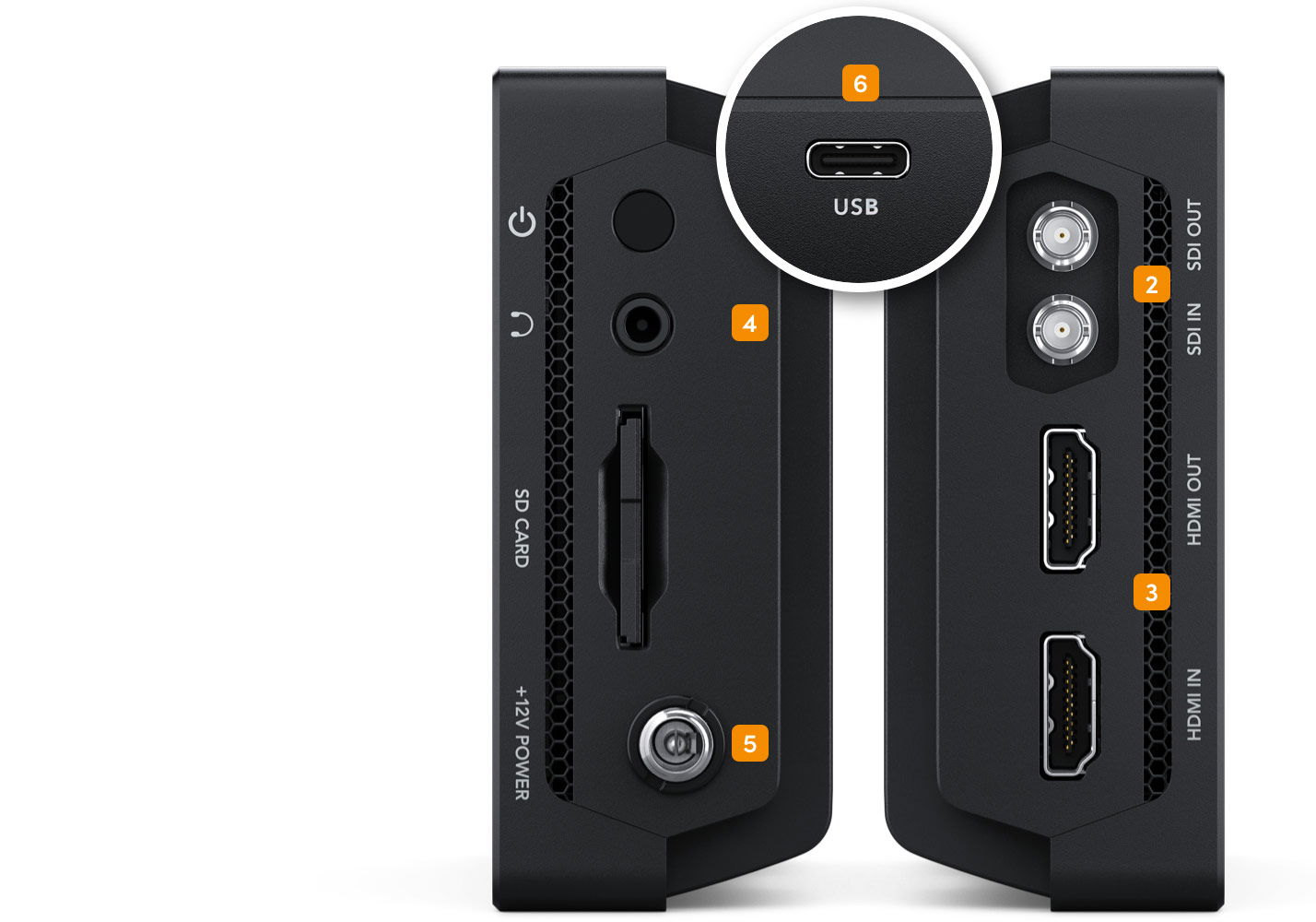

  • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software control.
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards: 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30â
  • 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards:  2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
  • 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
  • Ultra HD Video Standards:
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards:
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
  • SDI Compliance:
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
  • SDI Metadata Support: HD RP188
  • Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
  • Video Sampling:  4:2:2 YUV
  • Colour Precision:  10-bit
  • Colour Space:  REC 601, REC 709, REC 2020
  • HDR Support:  HDR10, Hybrid Log Gamma
  • Copy Protection:  HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  • Media:  1 x UHS-II SD for Ultra HD, compatible with regular SD for HD recording. USB Type-C 3.1 Gen 1 for external drive recording.
  • Media Type: SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards.
  • Supported Codecs: ProRes 422 HQ, ProRes 422, ProRes 422 LT, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF.
  •  Recorder Control: Integrated capacitive touchscreen LCD with Blackmagic OS onscreen controls for settings and navigating menus.
  • Software inclus:  Blackmagic Video Assist Operating System
  • Scopes:  Waveform, RGB Parade, Vector, Histogram.
  • Viewing Modes: Scopes with picture in picture or picture overlay and opacity control. Waveform and Parade with standard and HDR graticules.
  • Sistem de operare
  • Mac:  Mac 10.13 High Sierra, Mac 10.14 Mojave+.

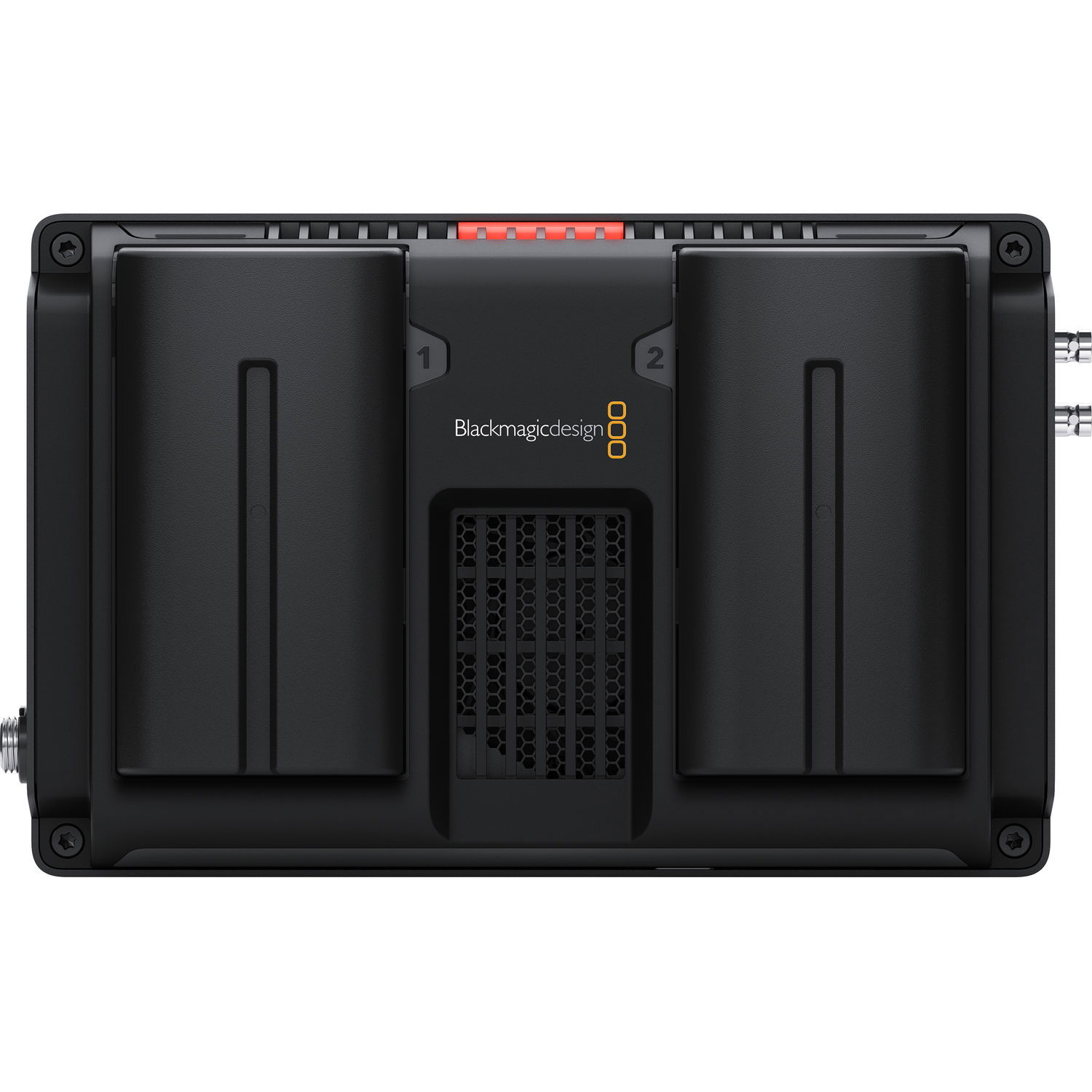

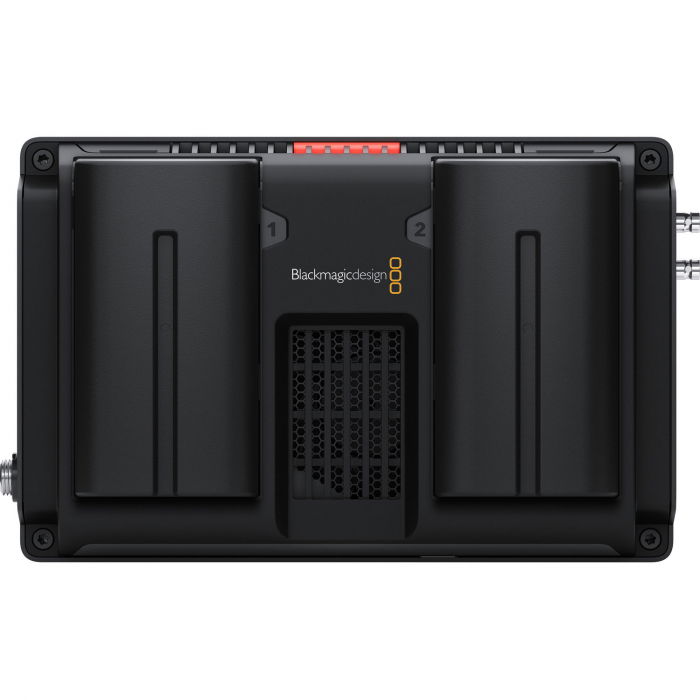

  • Alimentare  1 x External 12V power supply. Compatibil cu acumulatori Sony NP-F (neinclus in pachet).
  •
  • Caracteristici fizice

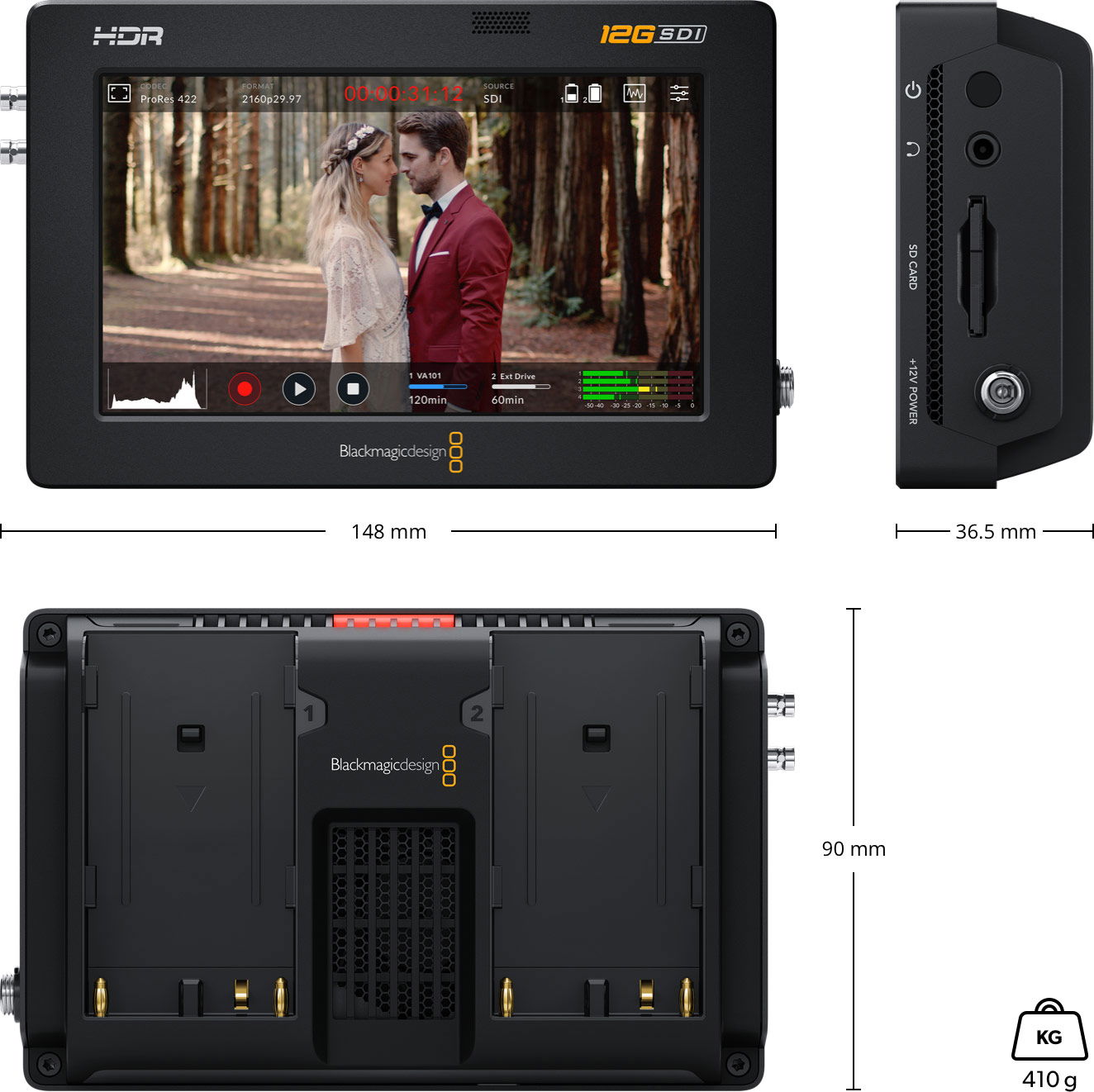

  • Dimensiuni (L x W x H) : 148 x 36.5 x 90mm
  • Greutate:  410g
  • Caracteristici de mediu
  • Temperatura operare:  0° - 40° C
  • Temperatura stocare: -20° - 45° C
  • Umiditate relativa: 0% - 90% fara condens
  •
